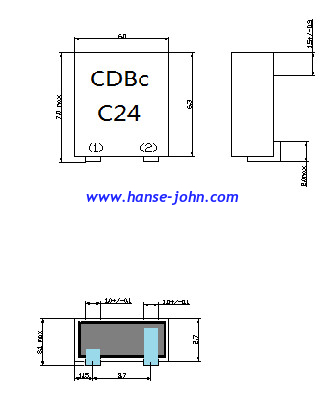

c28 CDBC455C28 CDBKB455KCAY28-R0

Minimum Order Quantity:	1000
Price:	$0.7/pcs
Packaging Details:	REEL
Delivery Time:	25 day
Payment Terms:	paypal, Western Union, MoneyGram
Supply Ability:	1000000

Contact Now

Detailed Product Description

Nominal Center Frequency (fn) (kHz):	455khz	Recovered Audio 3dB BW (kHz):	Fn±4.0 Min.
Recovered Audio Output (mV):	40 ± 20	Distortion (at Fn) (%):	3.0 Max.
IC:	TA31142F	IC Maker:	TOSHIBA
Type:	SMD

NO.	Item	Specification
4 – 1	Modulation Frequency	455KHz
4 – 2	Demodulated Bandwidth(3dB)	±4.0KHz min (from 455 kHz)
4 – 3	Demodulated Output	40±20mV. (at 4505kHz)
4 – 4	Demodulated Distortion Factor	3.0%Max.
4 – 5	Withstand Voltage	D.C. 50V for 1 minute

c28 CDBC455C28 CDBKB455KCAY28-R0

Input signal condition	Input level	80dBμ
	Frequency Deviation	±4.0 kHz
	Modulation Frequency	1.0 kHz
Demodulated 3dB Bandwidth	Input the above signal and sweep the carrier around 450 kHz, and find Out the maximum audio output frequency. Then sweep the carrier frequency again and find two frequencies, which are observed –3dB attenuation points from the maximum point. Higher frequency point is called (f1) and lower called (f2). (F1-450KHz) is defined as upper 3dB bandwidth and (450KHz-f2) defined as lower 3dB bandwidth.
Demodulate Output	Demodulated output shall be measured when carrier frequency is adjusted to 450KHz.
Demodulated Distortion Factor	Carrier frequency is adjusted to 450KHz.And distortion shall be measured with 1 kHz modulation frequency.
