10.7Mhz crystal filter 10M12C M. C. F. [ Monolithic Crystal Filters ]

Place of Origin:	wuxi
Brand Name:	HANSEJOHN
Certification:	Rohs，ISO
Model Number:	HM10M12C M. C. F. [ Monolithic Crystal Filters ]

Minimum Order Quantity:	100
Price:	$1.8-20/pcs
Packaging Details:	In standard export packing as per manufacturer
Delivery Time:	25 day
Payment Terms:	MoneyGram, Western Union
Supply Ability:	200000pcs per month

Contact Now

Detailed Product Description

Number Of Poles:	6	Center Frequency:	10.7Mhz
Bandwidth(3dB):	+/-6.0khzMIN	Bandwidth(45dB):	+/-14khz MAX
(fo±1000KHz) Stop Band Attenuation:	65dB	Ripple （f0±2khz）:	2.0dB
Insertion Loss （At Minimum Loss Point:	2.5dB	Temperature Stability （－20℃～ +80℃ ）:	±0.5% Max (-25℃ ～ +80℃)
Operating Temperature:	-20℃ ～ +80℃	Storage Temperature:	-40℃ ～ +85℃
Terminating Impedance:	2.8kΩ//1.0pF	Spurious Characteristics:	-------
Stop Bandwidth(60dB):	20Khz MAX

1.	(Model ):	HM10M7.5B
2.	(Nominal Center Frequency):	10.70MHz
3.	(Pass Band Width at 3dB):	≥6.0kHz
4.	(Ripple in Pass Band Width):	≤2.0dB
5.	(Insertion Loss):	≤2.5dB
6.	(Stop Band Width ):@45dB	14kHz MAX
	Stop Band Width:@60dB	20Khz MAX
7.	(Guaranteed Attenuation):	≥65dB(+/-300KHZ)
8.	(Terminating Impedance):2.8kΩ//1pF
9.	(Input level):	0～15dBm
10.	(Operating Temperature Range):	-20℃～+70℃

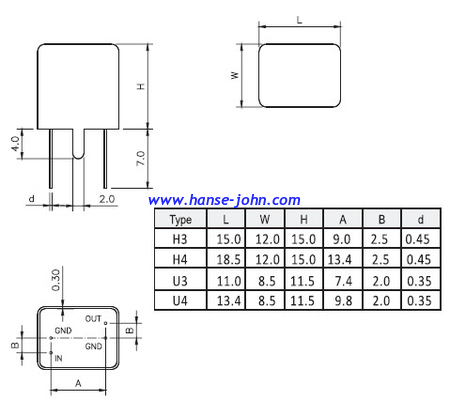

11.	Package type	H3

10.7Mhz crystal filter 10M12C M. C. F. [ Monolithic Crystal Filters ]
