21.4Mhz crystal filter 21M7.5D M. C. F. [ Monolithic Crystal Filters ]

Place of Origin:	wuxi
Brand Name:	HM
Certification:	Rohs，ISO
Model Number:	HM21M7.5D M. C. F. [ Monolithic Crystal Filters ]

Minimum Order Quantity:	100
Price:	$1.8-20/pcs
Packaging Details:	In standard export packing as per manufacturer
Delivery Time:	25 day
Payment Terms:	MoneyGram, Western Union
Supply Ability:	200000pcs per month

Contact Now

Detailed Product Description

Number Of Poles:	4	Center Frequency:	21.4Mhz
Bandwidth(3dB):	+/-3.75khz	Bandwidth(65dB):	+/-8.75khz
(fo±300KHz) Stop Band Attenuation:	80dB	Ripple （f0±2khz）:	2.0dB
Insertion Loss （At Minimum Loss Point:	4.0dB	Temperature Stability （－20℃～ +80℃ ）:	±0.5% Max (-25℃ ～ +80℃)
Operating Temperature:	-20℃ ～ +80℃	Storage Temperature:	-40℃ ～ +85℃
Terminating Impedance:	3.3kΩ//0pF	Spurious Characteristics:	-------
Stop Bandwidth(90dB):	+/-12.5Khz

1.	(Model ):	HM21M7.5B
2.	(Nominal Center Frequency):	21.40MHz
3.	(Pass Band Width at 3dB):	≥3.75kHz
4.	(Ripple in Pass Band Width):	≤2.0dB
5.	(Insertion Loss):	≤4.0dB
6.	(Stop Band Width ):	8.75kHz @65dB
		12.5kHz @90dB
7.	(Guaranteed Attenuation):	≥80dB(+/-300KHZ)
8.	(Terminating Impedance):3.3kΩ//0pF
9.	(Input level):	0～15dBm
10.	(Operating Temperature Range):	-20℃～+70℃

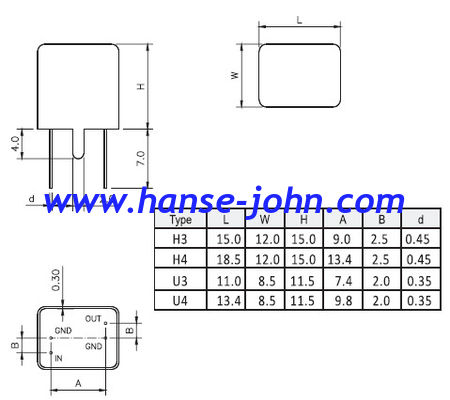

11.	Package type	U4

21.4Mhz crystal filter 21M7.5D M. C. F. [ Monolithic Crystal Filters ]
