    Product Details:

    Place of Origin: wuxi
    Brand Name: Hansejohn
    Certification: Pass-band low-loss, high rejection stopband, rectangular coefficient good
    Model Number: 46MHZ BP7050-46-20

    Payment & Shipping Terms:

    Minimum Order Quantity: 500
    Price: $1-20/pcs
    Packaging Details: REEL
    Delivery Time: 25 day
    Payment Terms: Western Union, MoneyGram
    Supply Ability: 1000000
    Contact Now
    Detailed Product Description

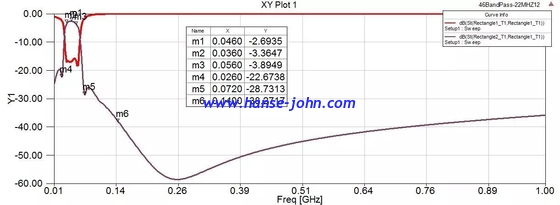

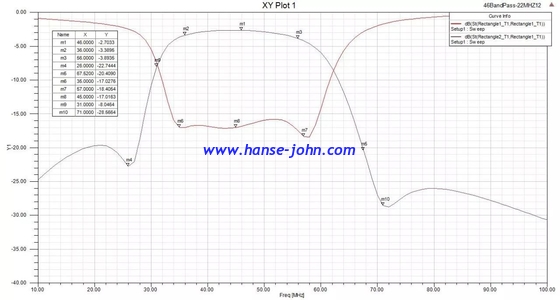

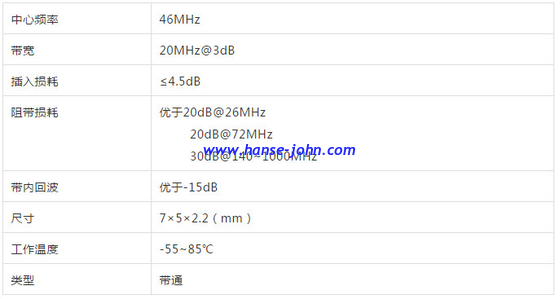

    Center Frequency: 46.00Mhz 3dB Bandwidth: 20Mhz Min
    26Mhz Stop Band Attention: 20dB Min 72Mhz Stopband Attention: 20dB Min
    140Mhz Stopband Attention: 30dB Min Echo In The Passband: -15dB Max

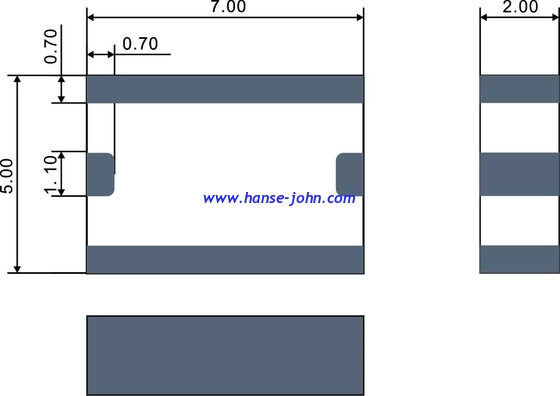

    Size: 7×5×2.2 Mm Operating Temperature: -55~+85°C

    RF Filters

      Low-Pass, High-Pass, Band-Pass, Band-Stop, Diplexers and Triplexers



    • Made by low temperature co-firing process, stable structure and high consistency
    • Small size, light weight and low power

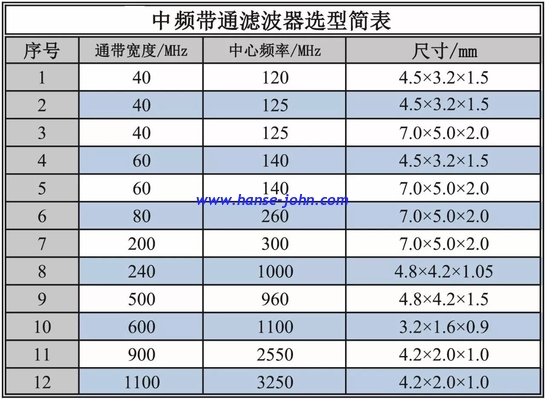

    • The frequency response can be flexibly customized with a center frequency covering 30Mhz to 138Ghz
    • SMD chip design, suitable for large-scale patch production process
