    Product Details:

    Place of Origin: wuxi
    Brand Name: Hansejohn
    Certification: Pass-band low-loss, high rejection stopband, rectangular coefficient good
    Model Number: 960MHZ BF4532-960-500

    Payment & Shipping Terms:

    Minimum Order Quantity: 500
    Price: $1-50/pcs
    Packaging Details: REEL
    Delivery Time: 25 day
    Payment Terms: Western Union, MoneyGram
    Supply Ability: 1000000
    Contact Now
    Detailed Product Description
    Center Frequency: 960.00Mhz 3dB Bandwidth: 500Mhz Min
    460Mhz Stop Band Attention: 40dB Min 1460Mhz Stopband Attention: 30dB Min
    1420Mhz~4.2Ghz Stopband Attention: 30dB Min Echo In The Passband: 1.5dB Max
    Size: 4.5×3.2×1.5 Mm Operating Temperature: -55~+85°C
    Insertion Loss: 3.5dB Max Bandwidth Ripple: 1.3dB Max
    DC~30Mhz Stopband Attention: 40dB Min Bandwidth Group Delay Time: 50ns
    Phase Consistency: +/-5°

    RF Filters

      Low-Pass, High-Pass, Band-Pass, Band-Stop, Diplexers and Triplexers

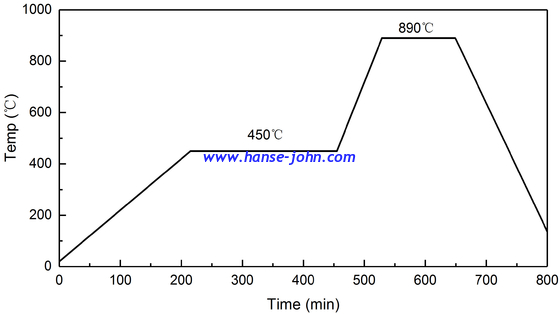

    • Made by low temperature co-firing process, stable structure and high consistency

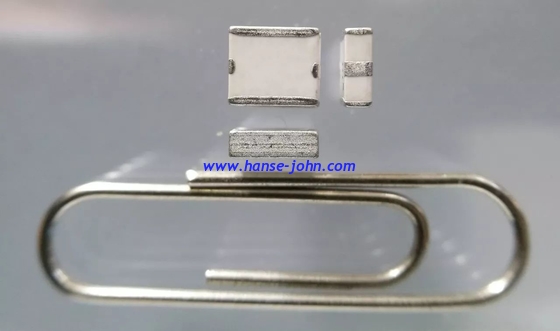

    • Small size, light weight and low power
    • The frequency response can be flexibly customized with a center frequency covering 30Mhz to 138Ghz

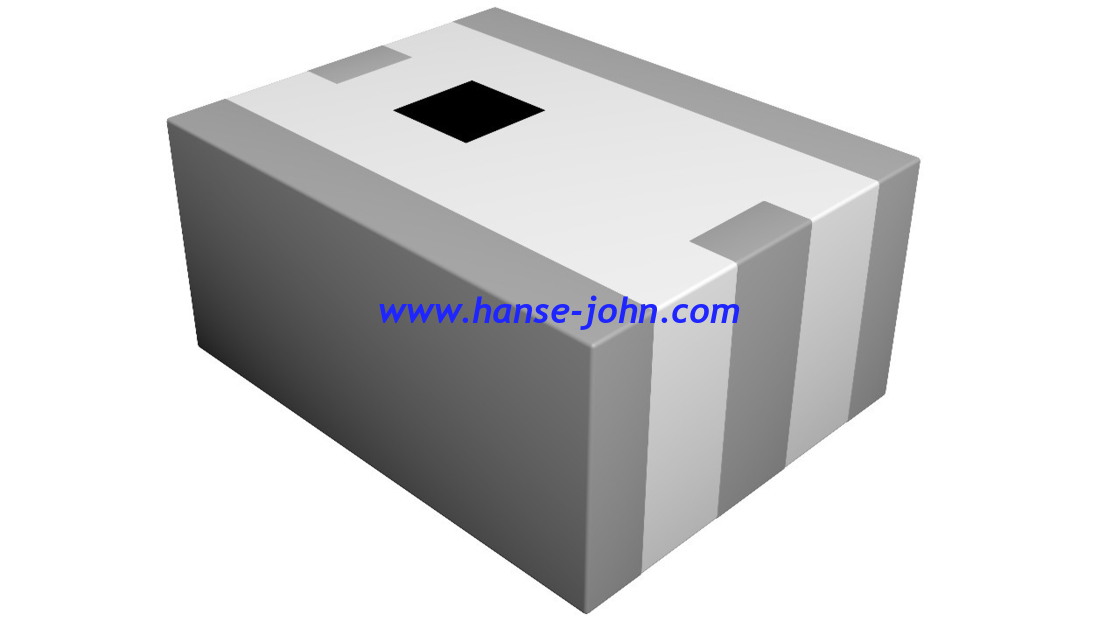

    • SMD chip design, suitable for large-scale patch production process



    900Mhz RF FILTERS Microwave Bandpass Filters Low-Pass, High-Pass, Band-Pass, Band-Stop, Diplexers and Triplexers


    900Mhz RF FILTERS Microwave Bandpass Filters Low-Pass, High-Pass, Band-Pass, Band-Stop, Diplexers and Triplexers


    900Mhz RF FILTERS Microwave Bandpass Filters Low-Pass, High-Pass, Band-Pass, Band-Stop, Diplexers and Triplexers

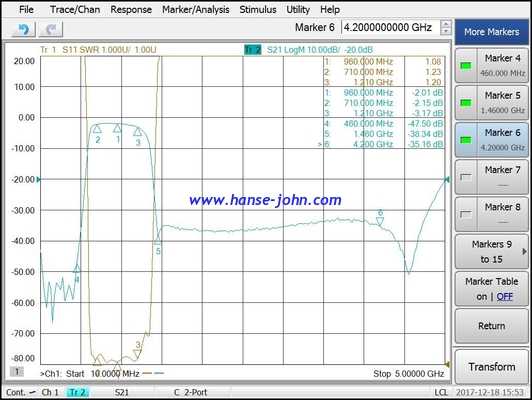

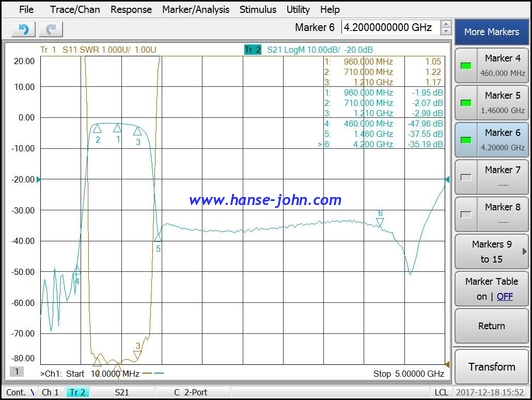

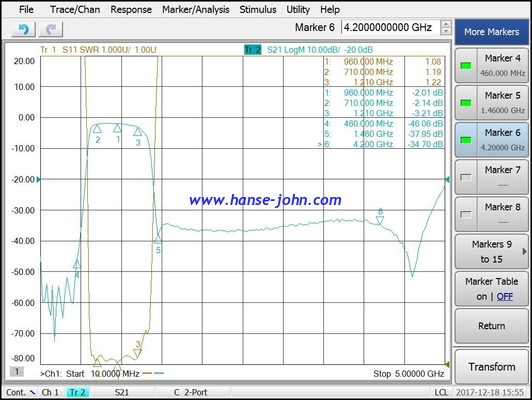

    Batch consistency data 1~10

    1

    900Mhz RF FILTERS Microwave Bandpass Filters Low-Pass, High-Pass, Band-Pass, Band-Stop, Diplexers and Triplexers


    2

    900Mhz RF FILTERS Microwave Bandpass Filters Low-Pass, High-Pass, Band-Pass, Band-Stop, Diplexers and Triplexers

    3

    900Mhz RF FILTERS Microwave Bandpass Filters Low-Pass, High-Pass, Band-Pass, Band-Stop, Diplexers and Triplexers

    4

    900Mhz RF FILTERS Microwave Bandpass Filters Low-Pass, High-Pass, Band-Pass, Band-Stop, Diplexers and Triplexers

    5

    900Mhz RF FILTERS Microwave Bandpass Filters Low-Pass, High-Pass, Band-Pass, Band-Stop, Diplexers and Triplexers

    6

    900Mhz RF FILTERS Microwave Bandpass Filters Low-Pass, High-Pass, Band-Pass, Band-Stop, Diplexers and Triplexers

    7

    900Mhz RF FILTERS Microwave Bandpass Filters Low-Pass, High-Pass, Band-Pass, Band-Stop, Diplexers and Triplexers

    8

    900Mhz RF FILTERS Microwave Bandpass Filters Low-Pass, High-Pass, Band-Pass, Band-Stop, Diplexers and Triplexers

    9

    900Mhz RF FILTERS Microwave Bandpass Filters Low-Pass, High-Pass, Band-Pass, Band-Stop, Diplexers and Triplexers

    10

    900Mhz RF FILTERS Microwave Bandpass Filters Low-Pass, High-Pass, Band-Pass, Band-Stop, Diplexers and Triplexers







    900Mhz RF FILTERS Microwave Bandpass Filters Low-Pass, High-Pass, Band-Pass, Band-Stop, Diplexers and Triplexers

    900Mhz RF FILTERS Microwave Bandpass Filters Low-Pass, High-Pass, Band-Pass, Band-Stop, Diplexers and Triplexers

    900Mhz RF FILTERS Microwave Bandpass Filters Low-Pass, High-Pass, Band-Pass, Band-Stop, Diplexers and Triplexers

    900Mhz RF FILTERS Microwave Bandpass Filters Low-Pass, High-Pass, Band-Pass, Band-Stop, Diplexers and Triplexers

    900Mhz RF FILTERS Microwave Bandpass Filters Low-Pass, High-Pass, Band-Pass, Band-Stop, Diplexers and Triplexers

    900Mhz RF FILTERS Microwave Bandpass Filters Low-Pass, High-Pass, Band-Pass, Band-Stop, Diplexers and Triplexers

    900Mhz RF FILTERS Microwave Bandpass Filters Low-Pass, High-Pass, Band-Pass, Band-Stop, Diplexers and Triplexers

    900Mhz RF FILTERS Microwave Bandpass Filters Low-Pass, High-Pass, Band-Pass, Band-Stop, Diplexers and Triplexers

    900Mhz RF FILTERS Microwave Bandpass Filters Low-Pass, High-Pass, Band-Pass, Band-Stop, Diplexers and Triplexers

    900Mhz RF FILTERS Microwave Bandpass Filters Low-Pass, High-Pass, Band-Pass, Band-Stop, Diplexers and Triplexers

    900Mhz RF FILTERS Microwave Bandpass Filters Low-Pass, High-Pass, Band-Pass, Band-Stop, Diplexers and Triplexers

    900Mhz RF FILTERS Microwave Bandpass Filters Low-Pass, High-Pass, Band-Pass, Band-Stop, Diplexers and Triplexers

    900Mhz RF FILTERS Microwave Bandpass Filters Low-Pass, High-Pass, Band-Pass, Band-Stop, Diplexers and Triplexers

    900Mhz RF FILTERS Microwave Bandpass Filters Low-Pass, High-Pass, Band-Pass, Band-Stop, Diplexers and Triplexers

    900Mhz RF FILTERS Microwave Bandpass Filters Low-Pass, High-Pass, Band-Pass, Band-Stop, Diplexers and Triplexers
