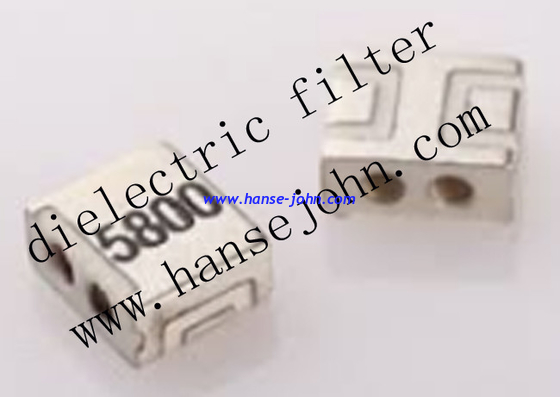

Dielectric Filter SMD 1090.00000M Size 6.8×5.6×2.8(mm)

Product Details:

Place of Origin:	China
Brand Name:	HANSEJOHN
Certification:	Rohs，ISO
Model Number:	HMDF1090-S1

Payment & Shipping Terms:

Minimum Order Quantity:	100
Price:	$5-200/pcs
Packaging Details:	In standard export packing as per manufacturer
Delivery Time:	35 day
Payment Terms:	Western Union, MoneyGram
Supply Ability:	200000pcs per month

Contact Now

Detailed Product Description

Bandwidth [3dBBW:	1	Insertion Loss In BW（Normal Temperature）:	3.5 DB Max.
Center Frequency [fo:	1	Insertion Loss In BW（Extreme Working Temperature）:	3.7dB Max
Ripple In BW:	1.0dB Max	Bandwidth [1dBBW:	1
VSWR In Fo ±7.5MHz:	1.5 ：1max Ratio	In/Out Impedance:	50 Ω
Attenuation:	10dB Min. @ Fo ±25MHz	Attenuation [Absolute Value:	1
Maximum Output Power:	2 W Max.	Range Of Working Temperature:	-55℃ To +85℃
Measurement:	JIG

Dielectric Filter SMD 1090.00000M Size 6.8×5.6×2.8(mm)

DIELECTRIC FILTER SPECIFICATION

HMDF1090-S1

ELECTRIICAL SPECIIFIICATIIONS]
ITEM SPEC Unit
Center Frequency [fo] 1090.0 MHz
Bandwidth [BW] fo ±10[ 1080 ~ 1100] MHz
Bandwidth [3dBBW] 20 min. MHz
Insertion Loss in BW
3.5 max. @Normal temperature dB

3.7 max. @Extreme working temperature dB
Ripple in BW 1.0 max. dB
VSWR in fo ±7.5MHz 1.5 :1max ratio
In/Out Impedance 50 Ω
Attenuation
[Absolute Value]
10dB min. @ fo ±25MHz
22dB min. @ fo ±50MHz
Maximum output power 2 W max.
Operation Temperature Range -55℃ to +85℃
Measurement JIG
