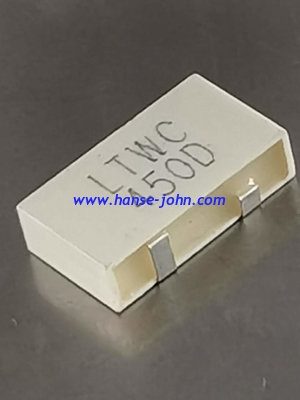

LTWC450B CFWKA450KBFY001-R0 PIEZOELECTRONIC CERAMIC FILTER LTC450BW/LTC450CW/LTC450DW/LTC450EW/LTC450FW/LTC450GW/LTC450H

LTWC450B CFWKA450KBFY001-R0 PIEZOELECTRONIC CERAMIC FILTER LTC450BW/LTC450CW/LTC450DW/LTC450EW/LTC450FW/LTC450GW/LTC450H

LTWC450B CFWKA450KBFY001-R0 PIEZOELECTRONIC CERAMIC FILTER LTC450BW/LTC450CW/LTC450DW/LTC450EW/LTC450FW/LTC450GW/LTC450H

Product Details:

Place of Origin:	WUXI
Brand Name:	HM
Certification:	ROHS，CE
Model Number:	ceramic filter 450khz ,CFWKA450KBFY001-R0,CFULA455KH1A-B0 LTC450HTW LTC450IW LTC450ITW

Payment & Shipping Terms:

Minimum Order Quantity:	1000
Price:	$1.1
Packaging Details:	REEL
Delivery Time:	32days
Payment Terms:	Western Union, MoneyGram
Supply Ability:	200000PCS/MONTH

Contact Now

Detailed Product Description

CENTER FREQUENCY:	450+/-2.0KHZ	6dB BANDWIDTH:	+/-15KHZ MIN
50dB BANDWIDTH:	30KHZ MAX	RIPPLE:	2.0dB MAX
INSERSION LOSS:	3.0dB MAX	STOP BAND ATTENTION:	50dB MIN

LTWC450B CFWKA450KBFY001-R0 PIEZOELECTRONIC CERAMIC FILTER LTC450BW/LTC450CW/LTC450DW/LTC450EW/LTC450FW/LTC450GW/LTC450H

NO.	Item	Specification
4 – 1	Center Frequency f0 (Center of 6dB Bandwidth)	450±2.0KHz
4 – 2	Bandwidth(3dB)	±11.0KHz min
	Bandwidth(6dB)	±15.0KHz min
	Bandwidth(50dB)	±30.0KHz min
4 – 3	(fo±100KHz) Stop Band Attenuation	45dB min
4 – 4	(f0± 11khz) Ripple (f0± 11khz)	2.0dB max
4 – 5	Insertion Loss (At minimum loss point)	5.0dB max
4 – 6	Temperature Stability (－20℃～ +80℃ )	±0.5% max (-25℃ ～ +80℃)
4－7	Operating Temperature	-20℃ ～ +80℃
4－8	Storage Temperature	-40℃ ～ +85℃
4－9	Insulation Resistance(DC 25V 1 minute)	100MΩ min
4 – 10	Input/Output Impedance	1.5 KΩ

LTWC450B CFWKA450KBFY001-R0 PIEZOELECTRONIC CERAMIC FILTER LTC450BW/LTC450CW/LTC450DW/LTC450EW/LTC450FW/LTC450GW/LTC450H

LTWC450B CFWKA450KBFY001-R0 PIEZOELECTRONIC CERAMIC FILTER LTC450BW/LTC450CW/LTC450DW/LTC450EW/LTC450FW/LTC450GW/LTC450H
