millimeter wave filter 5006

millimeter wave filter 5006

    • millimeter wave filter 5006
    • millimeter wave filter 5006
    • millimeter wave filter 5006

    Product Details:

    Place of Origin: wuxi
    Brand Name: HM
    Certification: Pass-band low-loss, high rejection stopband, rectangular coefficient good
    Model Number: GHZ

    Payment & Shipping Terms:

    Minimum Order Quantity: 1500
    Price: 2000.0 RMB
    Packaging Details: REEL
    Delivery Time: 25 day
    Payment Terms: 现金
    Supply Ability: 1000000
    Contact Now
    Detailed Product Description

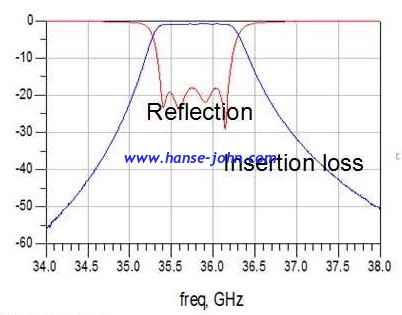

    millimeter wave filter 5006millimeter wave filter 5006

    L*W*H
    mm
    25.8*8.1*12.9




    model

    passband(GHz)

    Max.IL(dB)

    Stopband1 (GHz)

    Stopband2 (GHz)

    FL2CX35CX05-5006A

    34.125-35.875

    2.6

    32.9,50dB

    37.2, 50dB

    FL2CX34CX05-5006B

    33.15-34.85

    2.8

    31.9,50dB

    36.1,50dB

    FL2CX33CX05-5006C

    32.175-33.825　

    3

    31,50dB

    35.1,50dB

    FL2CX35CX07-5006D

    33.775-36.225　

    3.3　

    32.1,50dB　

    38.1, 50dB　

    FL2CX34CX07-5006E

    32.81-35.19

    3.5　

    31.2,50dB

    37, 50dB　

    FL2CX33CX07-5006F

    31.845-34.155　

    3.8

    30.2,50dB　

    35.9,50dB　
