millimeter wave filter 5007

millimeter wave filter 5007

    • millimeter wave filter 5007
    • millimeter wave filter 5007
    • millimeter wave filter 5007

    Product Details:

    Place of Origin: wuxi
    Brand Name: HM
    Certification: Pass-band low-loss, high rejection stopband, rectangular coefficient good
    Model Number: GHZ

    Payment & Shipping Terms:

    Minimum Order Quantity: 1500
    Price: 2000.0 RMB
    Packaging Details: REEL
    Delivery Time: 25 day
    Payment Terms: 现金
    Supply Ability: 1000000
    Contact Now
    Detailed Product Description

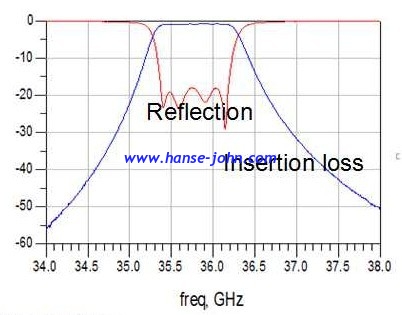

    millimeter wave filter 5007millimeter wave filter 5007

    L*W*H
    mm
    25.94*7.77*13.07




    model

    passband(GHz)

    Max.IL(dB)

    Stopband1 (GHz)

    Stopband2 (GHz)

    FL2CX38CX05-5007A

    37.05-38.95

    2.7

    35.7,50dB

    40,39dB

    FL2CX37CX05-5007B

    36.075-37.925

    2.9

    34.7,50dB

    39.4,50dB

    FL2CX36CX05-5007C

    35.1-36.9　

    3.1

    33.8,50dB

    38.2,50dB

    FL2CX38CX07-5007D

    36.67-39.33　

    3.4　

    34.8,50dB　

    40,20dB　

    FL2CX37CX07-5007E

    35.705-38.295　

    3.6　

    33.9,50dB

    40,44dB　

    FL2CX36CX07-5007F

    34.74-37.26　

    4　

    33,50dB　

    39.2,50dB　
