    Product Details:

    Place of Origin: wuxi
    Brand Name: HM
    Certification: Pass-band low-loss, high rejection stopband, rectangular coefficient good
    Model Number: GHZ

    Payment & Shipping Terms:

    Minimum Order Quantity: 1500
    Price: 2000.0 RMB
    Packaging Details: REEL
    Delivery Time: 25 day
    Payment Terms: 现金
    Supply Ability: 1000000
    Contact Now
    Detailed Product Description

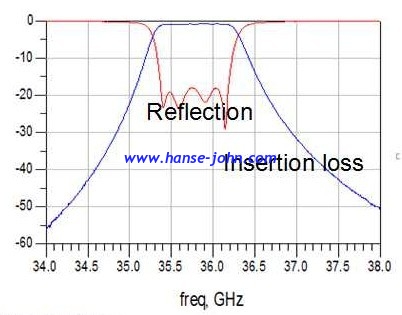

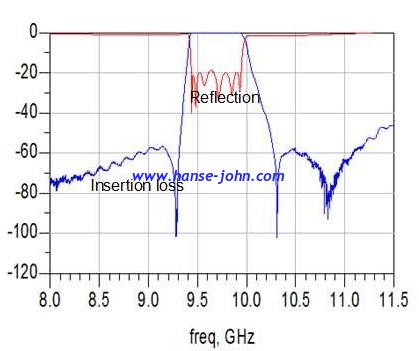

    Dual-mode Bandpass FiltersDual-mode Bandpass Filters
    characteristics:

    1.compactness

    2.excellent stopband rejection

    3.low insertion loss

    application:

    wireless communication ,radar,etc

    series product specifications:

    center frequency :3-40Ghz

    relative bandwidth :0.5%-10%

    vswr:<1.5

    insertion loss:<0.5dB

    standard:<0.2dB available
