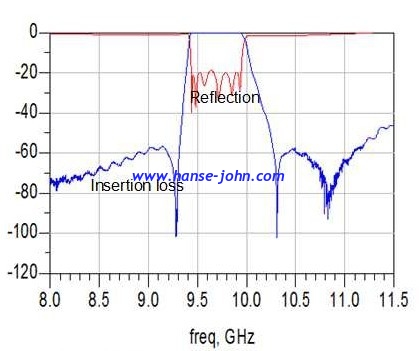

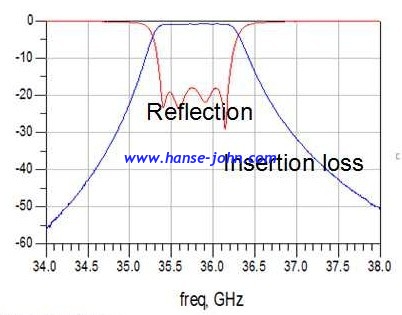

Dual-mode highpass Filters

Dual-mode highpass Filters

    • Dual-mode highpass Filters
    • Dual-mode highpass Filters
    • Dual-mode highpass Filters
    • Dual-mode highpass Filters

    Product Details:

    Place of Origin: wuxi
    Brand Name: HM
    Certification: Pass-band low-loss, high rejection stopband, rectangular coefficient good
    Model Number: GHZ

    Payment & Shipping Terms:

    Minimum Order Quantity: 1500
    Price: 2000.0 RMB
    Packaging Details: REEL
    Delivery Time: 25 day
    Payment Terms: 现金
    Supply Ability: 1000000
    Contact Now
    Detailed Product Description

    Dual-mode highpass FiltersDual-mode highpass Filters
    characteristics:

    ultra-wideband

    application:

    microwave measurements

    series product specifications:

    passband cutoff frequency :3-12.5Ghz

    vswr:<2

    insertion loss:<2dB

    stopband rejection:60dB

    total length:165mm
